0:02
have you ever wondered what force holds
0:04
a helicopter back as it moves through
0:06
the air That force is called drag and
0:09
it's one of the four fundamental
0:10
aerodynamic forces that act on any
0:17
in helicopters drag is the force that
0:20
resists movement through the air it's
0:22
produced when lift is developed by the
0:24
rotor blades and it's something the
0:26
engine must constantly fight against to
0:28
keep the rotor turning by nature drag
0:31
always acts parallel to the relative
0:33
wind that's the airflow experienced by
0:36
the moving blades total drag on a
0:38
helicopter is the combination of three
0:40
types profile drag induced drag and
0:46
profile drag develops from the
0:48
frictional resistance of the blades
0:50
passing through the air it does not
0:52
change significantly with the air foil's
0:54
angle of attack but increases moderately
0:56
when air speed increases profile drag is
1:00
composed of form drag and skin friction
1:02
form drag results from the turbulent
1:04
wake caused by the separation of air
1:06
flow from the surface of a structure the
1:09
amount of drag is related to both the
1:11
size and shape of the structure that
1:13

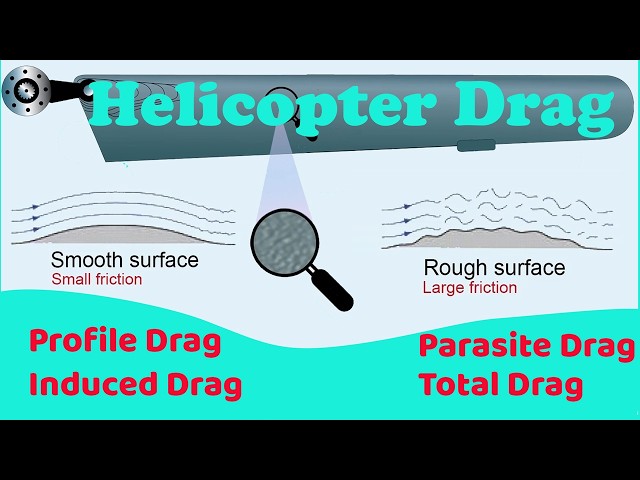

protrudes into the relative wind skin
1:15
friction is caused by surface roughness
1:18
even though the surface appears smooth
1:20
it may be quite rough when viewed under
1:22
a microscope a thin layer of air clings
1:24
to the rough surface and creates small
1:27
eddies that contribute to drag induced
1:30
drag is created as a direct result of
1:32
the lift being generated by the rotor
1:34
blades when lift is produced high
1:36
pressure air beneath the blade moves
1:38
toward the low pressure area above it
1:41
especially at the blades trailing edge
1:45
this interaction forms spiraling air
1:47
patterns known as vortices which trail
1:50
behind each blade these vortices push
1:52
the airream downward increasing what's
1:55
called down wash as a result the rotor
1:58
blade experiences a relative wind that
2:00
angles slightly downward and rearward
2:03
since lift always acts perpendicular to
2:05
the relative wind this tilted flow
2:08
causes the lift vector to tilt backward
2:10
and that rearward component of lift is
2:12
what we call induced drag as the angle
2:15
of attack increases the pressure
2:17
difference around the blade grows
2:19
creating stronger vortices and more
2:21
induced drag at lower air speeds angle
2:24
of attack is higher so induced drag
2:26
increases at higher air speeds angle of
2:29
attack drops and induced drag decreases
2:32
this makes induced drag the dominant
2:35
form of drag at low speeds especially
2:37
during hovering or slow flight parasite
2:41
drag is the drag a helicopter
2:42
experiences anytime it's moving through
2:45
the air and it comes from all the parts
2:47
that don't produce lift components like
2:49
the fuseloff rotor mast landing gear and
2:52
tail all contribute to this drag even
2:55
small openings like those for engine
2:57
cooling disrupt the air flow and
2:59
increase parasite drag the key thing to
3:02
remember is parasite drag increases
3:05
rapidly with air speed in fact it
3:07
increases with the square of velocity so
3:10
if you double the helicopter's speed the
3:12
parasite drag becomes four times greater
3:16
that's why parasite drag becomes the
3:18
dominant form of drag at high speeds
3:20
especially during cruise or fast forward
3:23
flight total drag in a helicopter is the
3:26
combined effect of all three drag types
3:29
profile induced and parasite drag as the
3:32
helicopter picks up speed induced drag
3:35
begins to decrease parasite drag rises
3:38
sharply and profile drag stays mostly
3:41
constant with only a slight increase at
3:43
higher speeds when we combine all these
3:46
forces we get a total drag curve the
3:49
lowest point on that curve is where drag
3:51
is at its minimum and this is known as
3:53
the point of maximum lift to drag ratio
3:58
at this speed the helicopter is
4:00
performing at its most efficient
4:02
generating the most lift for the least
4:04
amount of drag this point is crucial for
4:07
optimal flight performance and fuel
